Description
High Quality Billet Oil Dipstick for Honda K20 Engines
- Special Features: Oil Dipstick
- Material Type: Aluminum
- Item Diameter: 0inch
- Item Weight: 0.3kg
- Item Height: 0inch
- Item Width: 0inch
- Item Length: 0inch
- External Testing Certification: iso9001
- No. of Cylinders: 4 Cylinder
- Displacement: Oil Dipstick
- Model Name: Oil Dipstick
- Year: 2016
- Item Type: Fuel Supply & Treatment
- Brand Name: PERRIN
High quality Billet Oil Dipstick For Honda Engine K20 K20a K20a2 K20z1 K20z3 Dip Stick Hybrid without logo
K20 Valve Covers
When installing the dip stick please verify the stock levels with the mark on your new dip stick. You can scribe new marks if needed. There are too many variations with angles of motors, oil pans, and variations.
The current trend in Honda builds seems to be somewhat focused on clean details in the engine bay. With that said, we think most K owners would agree that the OEM orange dipstick on the K engine looks completely out of place, especially on a custom valve cover in a super clean engine bay. The JDM black dipstick is a slight improvement, but the height still has some fitment problems on some chassis. After seeing these unfinished looking dipsticks way too often, we decided it was time to offer something on a higher level to our customers.

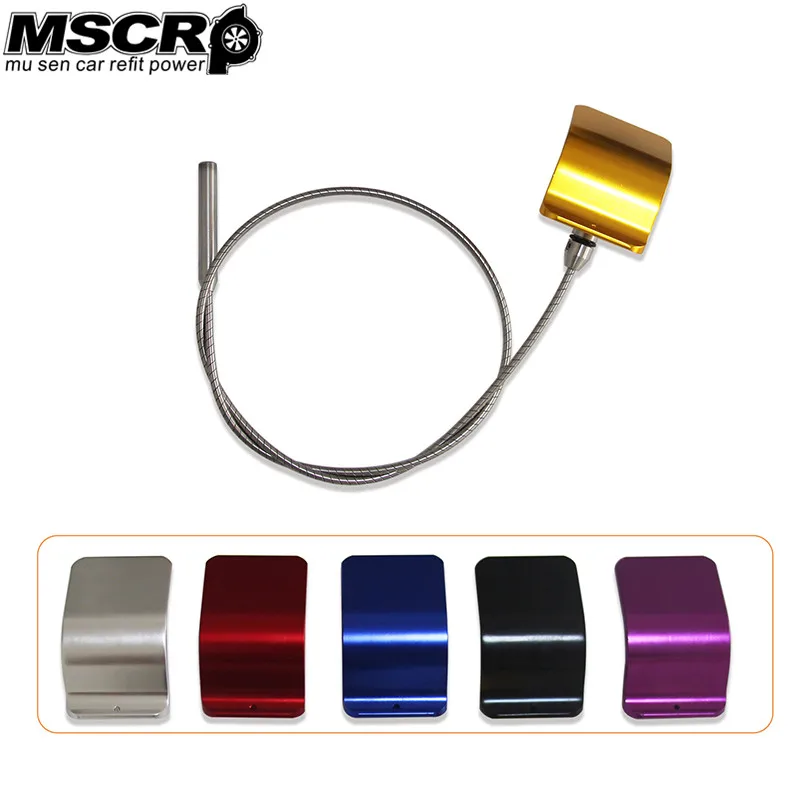

The Billet Oil Dipstick was designed to follow the exact contour of the OEM valve cover, giving it a smooth, shaved look. Along the bottom of front edge is a small flare, which is just enough for removal. Look closer and you’ll notice a small hole located at the center of the flared front edge. This can be used to attach a spring tie down on boosted applications where increased crankcase pressures can blow out the dipstick.

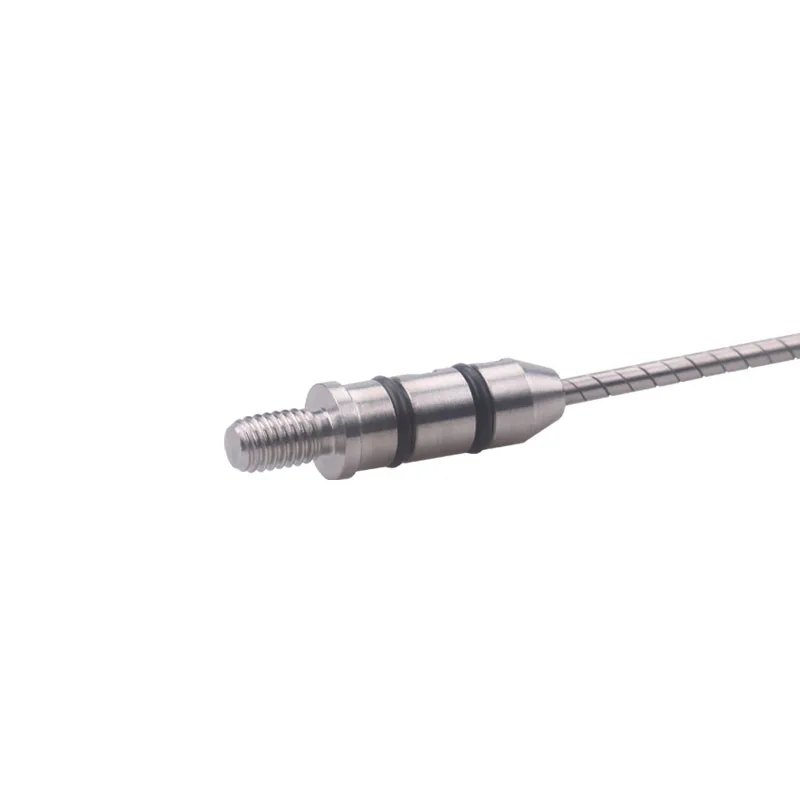

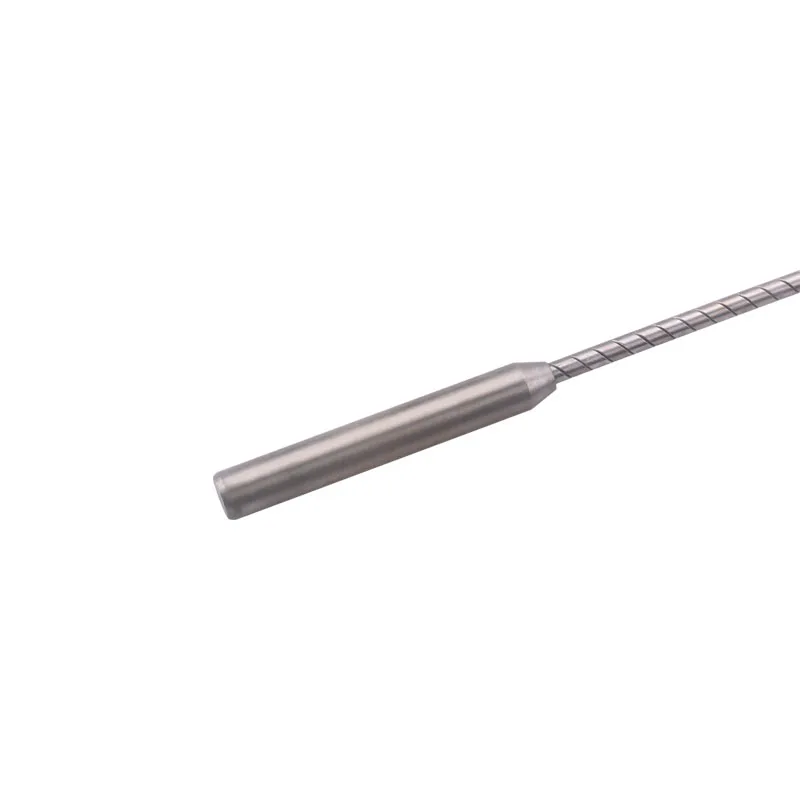

Starting with the 6061 billet aluminum top. All the remaining parts are 100% stainless steel, including the base, wire and level indicator. The base seals properly with 2 o-rings just like OEM and the level indicator has 2 markings on it, again matching OEM. Available for both K20 and K24 engines in 5 colors plus raw aluminum for those who might be interested in polishing or a custom color match. Note: There may be fitments with issues with some baffled oil pans
Applications: K20 Engines: Red, black, blue, gold, silver, Purple*** Please Specify what color you want on check-out.
High Quality Billet Oil Dipstick for Honda K20 Engines
